Description

Rental Includes:

1 x Yamaha MG10XU
1 x Power Adapter

Rentals are for a 24 hr period.
Call for discounted multiple-day options.

Optional Additional Services:

Delivery & Pickup options are available (Shipping is NOT available for Rental products)

– Please note that we can only provide services within a 20-mile radius of the NYC metro area.

Need help with producing your event? Give us a call. Schedule a free walk-through for your next event and let us help you take your event to the next level.

Please get in touch with us at 212-925-6575 ext:215 or ext:223 for all rentals.

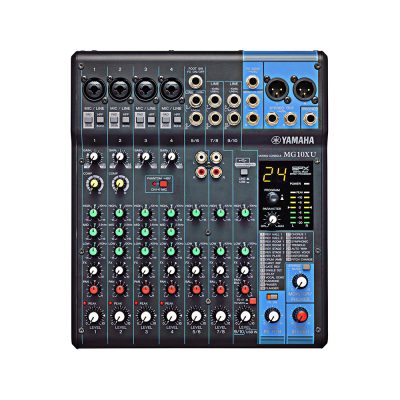

Yamaha MG10XU

The Yamaha MG10XU is a 10 Channel sound board with built in SPX vocal effects.

Features:

• Outstanding microphone preamps
• Switchable Phantom Power & PAD Switch
• 1-knob Compressors
• EQ and High-pass Filters
• AUX / Effect Sends / Group
• LED level metering
• Built-in SPX Digital Effects
• Metal Chassis
• USB

Specifications:

• On-board processors : SPX algorithm: 24 programs
• Phantom power: +48 V
• Digital I/O: USB Audio Class 2.0 compliant, Max 192 kHz, 24-bit
• Input Channels: 4 Mono[MIC/LINE], stereo[LINE]: 3
• Output Channels: STEREO OUT: 2
• MONITOR OUT: 1
• PHONES: 1
• AUX SEND: 1
• Bus: Stereo: 1, AUX[FX]: 1
• Input Channel Function
• PAD: 26 dB (Mono)
• HPF: 80 Hz, 12 dB/oct (Mono)
• COMP: 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
• EQ HIGH: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
• EQ MID: Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking
• EQ LOW: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
• PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping
• Level Meter: 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]
